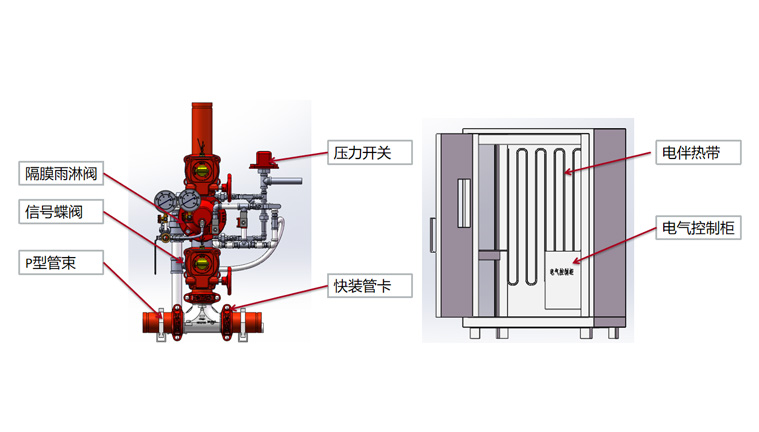

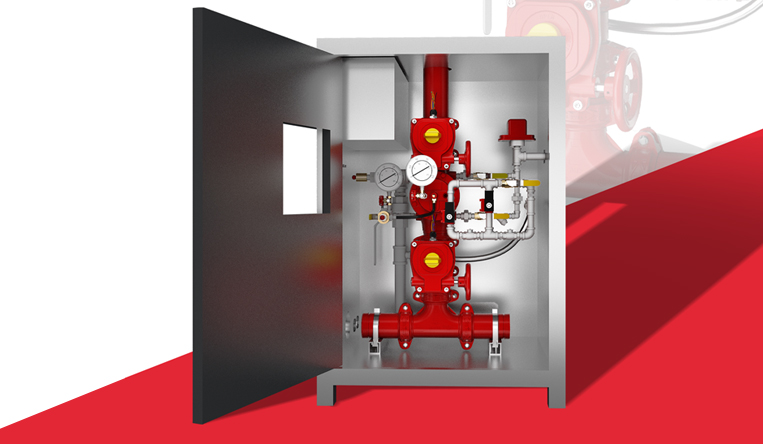

The alarm valves, water supply signal control valves, test signal control valves, drainage pipelines, control pipelines, etc. that must be installed in the automatic sprinkler fire extinguishing system are highly integrated, and the skid-mounted design greatly simplifies the installation and commissioning process. After receiving the sample, the customer only needs to make a simple connection between the inlet and outlet water pipes to quickly put it into use. This plug-and-play feature greatly improves the installation efficiency of the system and reduces the installation cost. At the same time, it also reduces the difficulty of installation on the construction site and avoids safety hazards caused by improper installation. In addition, the factory prefabricated design makes the alarm valve skid-mounted product structure compact and saves installation space;

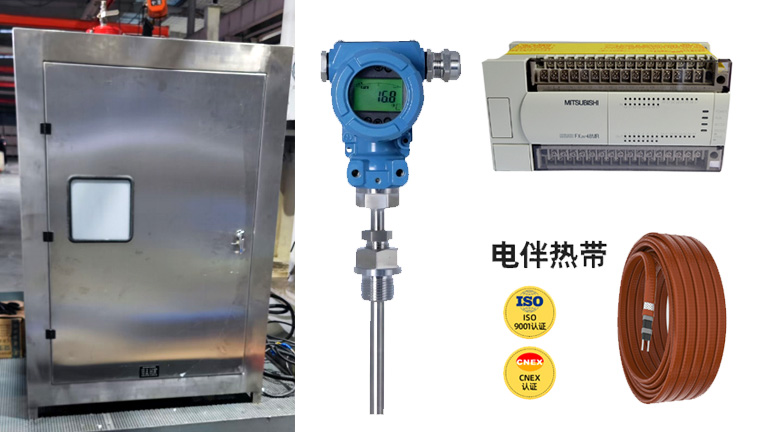

Once a fire occurs in the storage of materials in chemical plants and other working conditions, the fire burns violently and spreads rapidly, and deluge alarm valves are needed to quickly control the fire. However, when used outdoors in cold winter areas, it often cannot work normally due to ice. Our company's deluge valve skid is equipped with an intelligent temperature controller, which can set the temperature in the box as needed (computer or mobile terminal). The control system is based on the preset threshold. When the collected temperature is lower than the set threshold, the control system sends a start signal to connect the heating wire power supply; when the collected temperature is higher than the set threshold, the control system sends a shutdown signal to cut off the heating wire power supply. There is a temperature sensor in the box, and the temperature in the box is displayed in real time. The outer box is made of double-layer 304 stainless steel, with thermal insulation rock wool inside to achieve the insulation function.

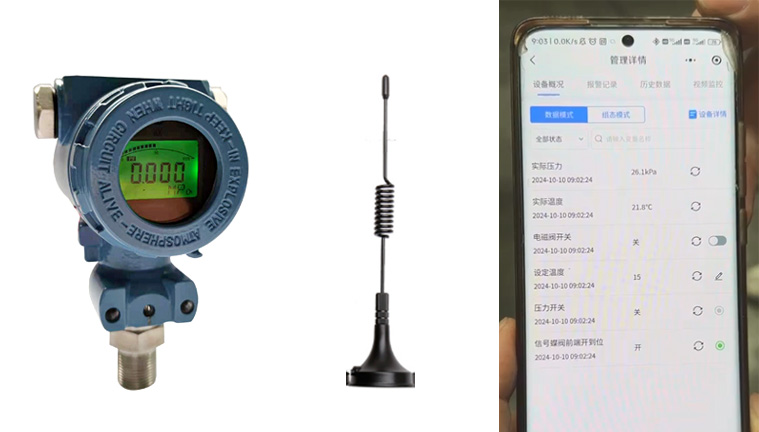

The skid is equipped with a pressure sensor. The real-time monitored pipeline pressure status signal is converted into an electrical signal through the data acquisition and transmission system, and the data information is uploaded to the cloud platform using the 4G network. Users can check the pipeline pressure status at any time on the computer and mobile phone WeChat applet to achieve real-time monitoring function. This instant feedback mechanism helps to discover and solve potential problems in a timely manner and ensure the stable operation of the system. When the equipment is abnormal, the system will immediately prompt the user through information. This instant response mechanism can take measures quickly to reduce the losses caused by failures. Users can remotely control the opening and closing of the main valve on the computer and mobile phone. This convenient operation method improves management efficiency and allows users to grasp and control the operating status of the system anytime and anywhere. In an emergency, the remote control function can respond quickly, and respond to emergencies by remotely operating the opening and closing of the main valve, reducing the risk and cost of manual intervention.
